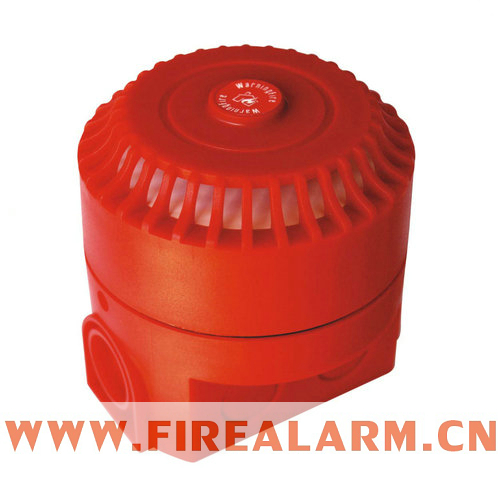

WR-06S

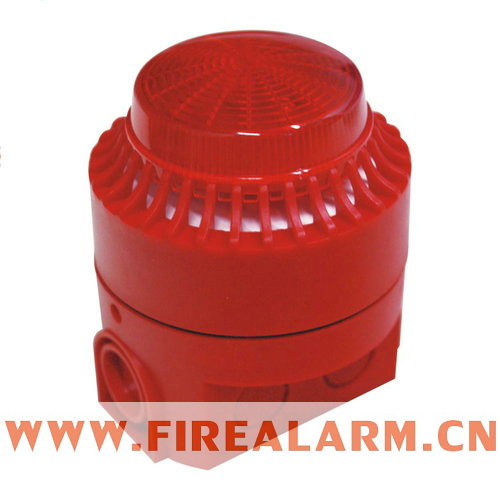

WR-06BS



 Content
FIAKO electronic sounder is designed for use with fire alarm systems, security systems and industrial signaling systems. Combined sounder and beacon provides an audio-visual warning which is suitable for places where high sound output and visual indication is required.
  • 32 signal tones selectable by Dip switch.
  • High sound output with low current consumption.
  • High efficiency lens for maximum light output.
  • Volume Control as standard.
  • Two sets of IN and OUT terminals, easy for installation
 Technical Data
Model
WR-06S
WR-06BS
Voltage Range
24V DC
Current Consumption
24V DC (tone 3)
14.5mA
Sound Output 24V DC
dB (A) at 1 meter
Max. 114
Volume Control
0 to -20dB adjustment
Ingress Protection
IP44
Ambient Temperature
-25íŠ ~ +80íŠ
Material
ABS plastic
Dimensions
92.5mm(Dia.) x 94mm(H)
92.5mm(Dia.) x 110mm(H)
Weight
254g
278g
Shape
