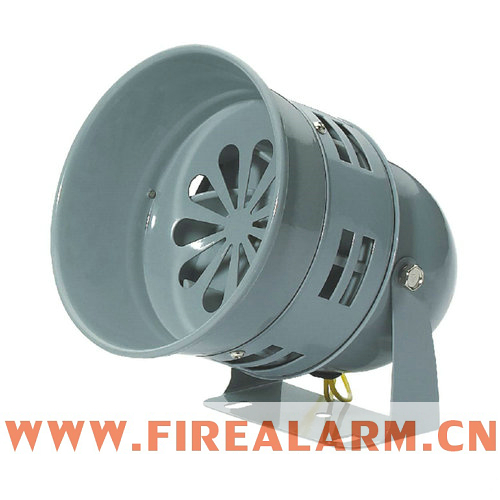

Moter Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.
Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
Body standard color : GREY or RED
Material : Plastic
Insulation resistance : 100MO(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44 |
| Technical Data |
|
| Model |
Voltage |
Current(A) |
Frequency(Hz) |
decibel |
Packing Size |
QTY |
Weight |
WS-02
|
DC12V |
5.8 |
60 |
116db |
53.5*34*41.5 cm |
24pcs |
16kg |
| DC24V |
2.1 |
60 |
116db |
16kg |
| AC110V |
1.6 |
60 |
116db |
22kg |
| AC220V |
0.8 |
60 |
116db |
22kg |
|
|
| Shape |
|
|
|
|
|
|
 |
